Develop helm applications directly in your kubernetes cluster

Deploying applications in Kubernetes can be complicated. Even the simplest application will require creating a series of interdependent components (e.g.namespace, RBAC rules, ingress, services, deployments, pods, secrets …), each with one or more YAML manifests.

Helm is the de-facto package manager for Kubernetes applications that allows developers and operators to easily package, configure, and deploy applications onto Kubernetes clusters. If you’re building an application that will run in Kubernetes, you should really look into leveraging Helm.

In this tutorial we’ll show you how to build your first Helm chart and how to use Okteto to develop your application directly in the cluster, saving you tons of time and integration problems.

This tutorial assumes that you have some Kubernetes knowledge and that you have access to a cloud provider, or you can set it up locally.

Helm 101

If you are new to Helm, I recommend you first go through one of the following articles:

Setup a Kubernetes cluster

The official Kubernetes setup guide covers this topic extensively. For the purpose of this tutorial, I recommend you either deploy a remote cluster via Digital Ocean’s Kubernetes service or locally with Minikube.

Install Helm

For OSX you can install it via brew by running the command below.

1
$ brew install helm

You can also install it via curl.

1
2
3
$ curl https://raw.githubusercontent.com/helm/helm/master/scripts/get > get_helm.sh
$ chmod 700 get_helm.sh
$ ./get_helm.sh

Once it’s installed, initialize it by running the command below.

1
$ helm init

The full installation chart is available here.

Generate your initial chart

The easiest way to create a new chart is by using the helm create command to create the initial scaffold of your chart.

1
$ helm create mychart

Helm will create a new directory called mychart with the structure shown below.

1
2
3
4
5
6
7
8
9
10
mychart
|-- Chart.yaml
|-- charts
|-- templates
| |-- NOTES.txt
| |-- _helpers.tpl
| |-- deployment.yaml
| |-- ingress.yaml
| |-- service.yaml
|-- values.yaml

Deploy your chart

The default chart is configured to run an NGINX server exposed via a service with a ClusterIP. To access it externally, we’ll tell it to use a NodePort instead.

Deploy the chart using the helm install command.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
$ helm install --name myapp ./mychart --set service.type=NodePort
NAME: myapp
LAST DEPLOYED: Tue Jan 8 16:08:05 2019
NAMESPACE: default
STATUS: DEPLOYED

RESOURCES:
==> v1/Service
NAME AGE
myapp-mychart 0s

==> v1beta2/Deployment
myapp-mychart 0s

==> v1/Pod(related)

NAME READY STATUS RESTARTS AGE
myapp-mychart-846949857-9d28t 0/1 Pending 0 0s

NOTES:
1. Get the application URL by running these commands:
export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services myapp-mychart)
export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
echo [http://$NODE_IP:$NODE_PORT](http://%24NODE_IP:%24NODE_PORT)

The output of the install command displays a summary of the resources created, and it renders the contents of the NOTES.txt file. Run the commands listed there to get a URL to access the NGINX service.

For Minikube:

1
2
3
4
5
$ export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services myapp-mychart)

$ export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")

$ echo [http://$NODE_IP:$NODE_PORT](http://%24NODE_IP:%24NODE_PORT)

For a hosted Kubernetes cluster (like Digital Ocean’s or GKE):

1
2
3
4
5
$ export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services myapp-mychart)

$ export NODE_IP=$(kubectl get nodes --selector=kubernetes.io/role!=master -o jsonpath={.items[*].status.addresses[?\(@.type==\"ExternalIP\"\)].address})

$ echo [http://$NODE_IP:$NODE_PORT](http://%24NODE_IP:%24NODE_PORT)

Open the URL in your browser.

Develop your application

Once we have a basic chart up and running, it’s time to develop our own application. At this point, we would have to follow the typical developer workflow:

  1. Build and test the application locally
  2. Build a container
  3. Give the container a label
  4. Push the container to a registry
  5. Update the values in our chart to match the new Docker image
  6. Upgrade the chart
  7. Test your changes
  8. Go back to 1

Instead of following that workflow, we’re going to save time and friction by developing our application directly in the cluster. The Cloud Native way.

Cloud Native Development

Cloud Native Development is THE way to develop Cloud Native Applications. Instead of wasting time and resources by developing locally and then testing in the cluster, we just do everything directly in the cluster. We open sourced Okteto to make it easier than ever to become a Cloud Native Developer.

Install the latest version of Okteto.

1
2
$ brew tap okteto/cli
$ brew install okteto

The installation guide on the repo has instructions on how to do it for MacOS, Windows, and Linux.

For the purpose of this tutorial, we’ll use a simplified version of Docker’s famous Voting App. Run the following command to get the code locally.

1
$ git clone [https://github.com/okteto/vote](https://github.com/okteto/vote)

Open a second terminal window, and go to the vote folder. From there, run the okteto initcommand to initialize your Cloud Native Development environment. This command will create a file called okteto.yml with the content displayed below.

1
2
3
4
5
6
7
8
9
10
11
12
$ okteto init
Python detected in your source. Recommended image for development: okteto/python:3
Which docker image do you want to use for your development environment? [okteto/python:3]:

✓ Okteto manifest (okteto.yml)

$ cat okteto.yml
name: vote
image: okteto/python:3
command:
- bash
workdir: /usr/src/app

Open your favorite IDE, and replace the value of namewith the name of your deployment. It should look something like this:

1
2
3
4
5
**name: myapp-mychart**
image: okteto/python:3
command:
- bash
workdir: /usr/src/app

Run the okteto up to start your Cloud Native Development environment.

1
2
3
4
5
6
7
8
$ okteto up
✓ Files synchronized
✓ Okteto Environment activated
Namespace: django-ramiro
Name: myapp-mychart

Welcome to your development environment. Happy coding!
okteto>

Once the environment is ready, start your application by executing the following commands in your Okteto terminal:

1
2
okteto> pip install -r requirements.txt
okteto> python app.py

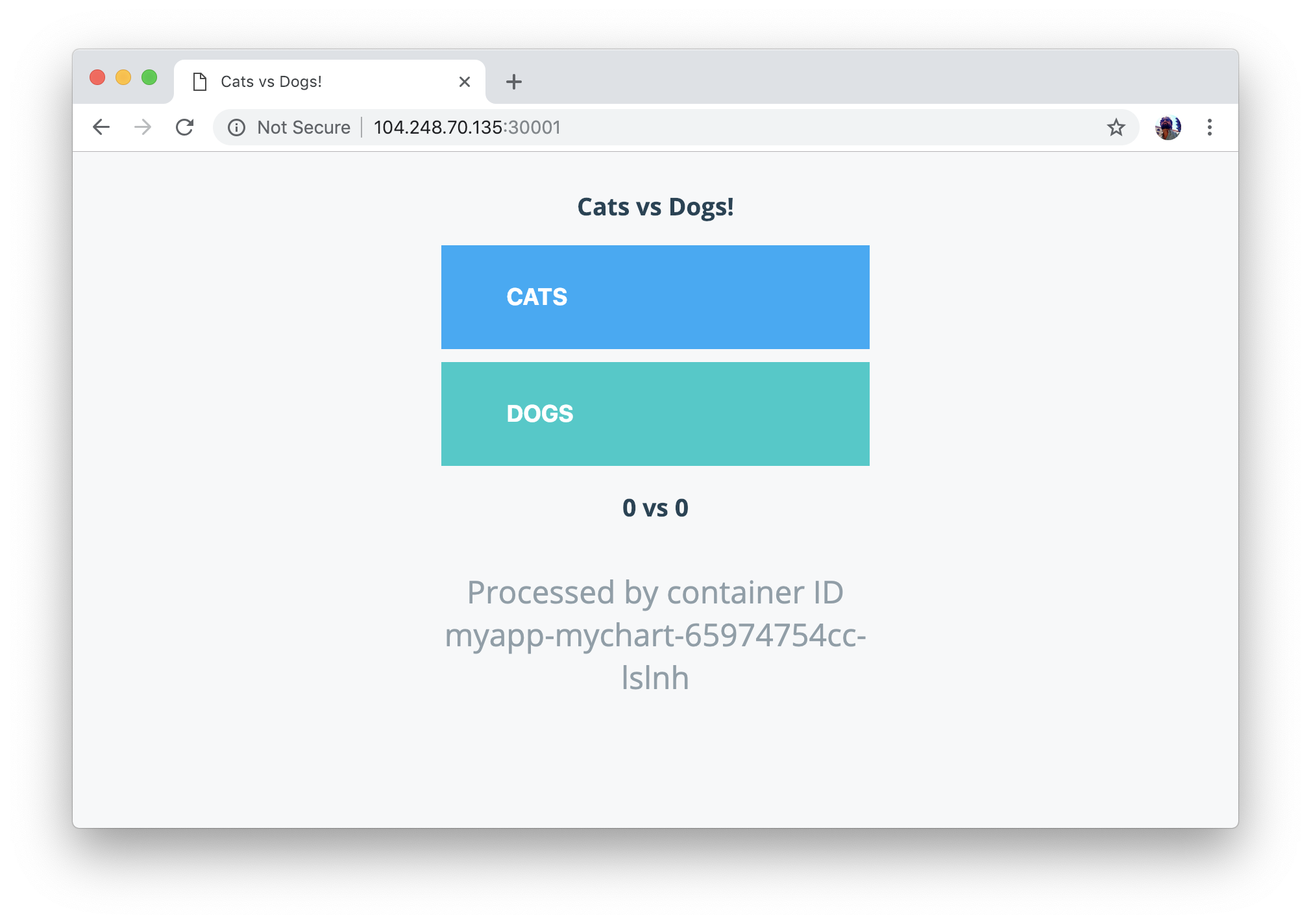

At this point, your application is running directly in the cluster (our github repo has an in-depth explanation of how this works). Notice the processed bytext near the bottom, it’s your kubernetes namespace and pod name. Go back to your browser and reload your tab to see the application in action.

Try it out a few times, just to make sure everything works. Now open the source of the application on your favorite IDE. Edit the file vote/app.py and change the option_a in line 8 from “Cats” to “Otters”. Save your changes.

Go back to the browser, refresh the Voting App UI, and notice that your code changes are instantly applied. Try a few more changes.

Once you are done developing, pressctrl+c and exit on the terminal where okteto upis running to stop your environment (psst: Notice how you never used docker or kubectl while working on your app. Pretty cool no?).

Final testing

Once you’re satisfied with your code, let’s test it end to end:

  1. Run okteto down to restore the original deployment (this is so that helm can process the new changes).
1
2
$ okteto down
✓ Your Okteto Environment has been deactivated
  1. Build a docker image for the voteapplication and push it to the registry.
1
2
$ docker build -t $YOUR_DOCKER_USER/vote:okteto .
$ docker push $YOUR_DOCKER_USER/vote:okteto
  1. Create a file named updated-values.yaml inside the mychartfolder. We’ll use this file to override the default configuration of the chart. Set the values of image.repository and image.tag to match your newly built image.
1
2
3
image:
repository: your_docker_user/vote
tag: okteto
  1. Upgrade your application using Helm by running the command below.
1
$ helm upgrade myapp ./mychart --set service.type=NodePort --values=./mychart/updated-values.yaml
  1. Open your browser, and verify that your application is running correctly.

Once your application is ready, you can package by using the helm package command and even distribute it via a repo, or with Kubeapps. This article has a good explanation of the process.

Conclusion

Helm is a great modern choice for deploying and managing applications. But developing charts and applications using the traditional developer workflow is slow and full of friction. Developing directly in the cluster makes the entire process a lot more efficient. Okteto is here to help you with that.

Interested in improving your Kubernetes and Docker development workflows? Contact Okteto and stop waiting for your code to build and redeploy.
